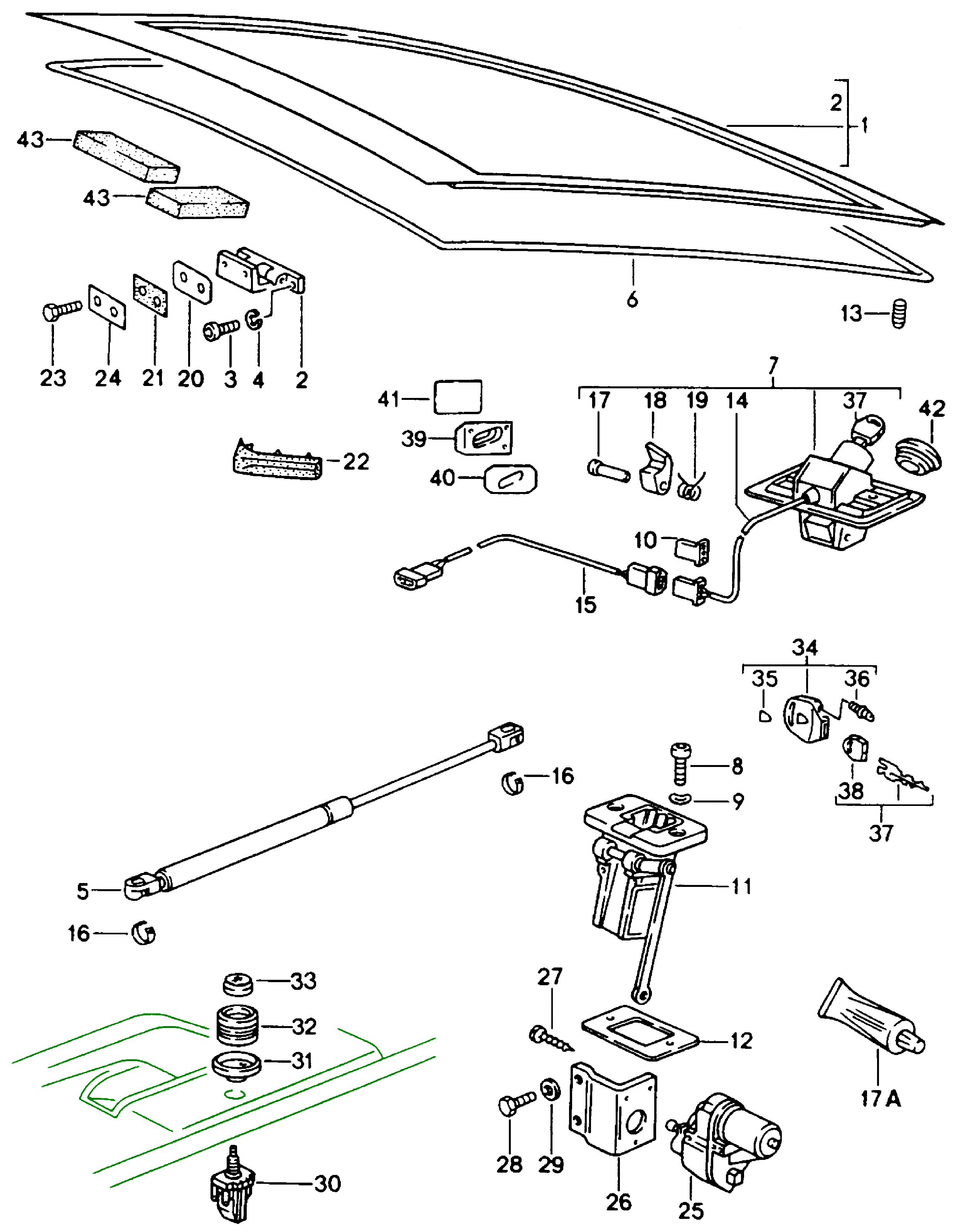

rear lid (installation parts) 1/3

Pos	Part Number	Description	Remark	Qty	Model
		rear lid (installation parts)
1	928 512 005 05	rear lid (GRV - prime coated)		1
2	928 512 041 04	hinge		2
3	999 509 012 02	pan-head screw (M6*20)		8
4	N 012 026 3	lock ring (A 6)		8
5	928 512 331 05	gas-pressure spring		2
6	928 512 129 04	gasket		1
7	928 512 903 03	lid lock (upper part w/o stipulated lock number & 1 key)		1
(7)	928 512 901 03	lid lock (upper part with stipulated lock number &1 key state lock number)		1
7A	000 043 204 21	grease (for lock cylinder)		X
8	N 014 770 3	pan-head screw (M8*15)		4
9	999 523 102 02	lock washer		4
10	171 971 999 B	terminal sleeve housing		3
11	928 512 055 20	lid lock (lower part)		1
12	928 512 179 02	desk pad		X
(12)	928 512 181 02	desk pad		X
13	999 703 140 40	rubber buffer		2
14	928 512 070 02	contact switch		1
15	928 612 187 00	wiring harness	/LL	1
(15)	928 612 183 00	wiring harness	/RL	1
16	900 169 016 02	clip		4
17	928 512 165 02	clinch pin		1
18	928 512 161 03	latch		1
19	928 512 163 02	spring		1
